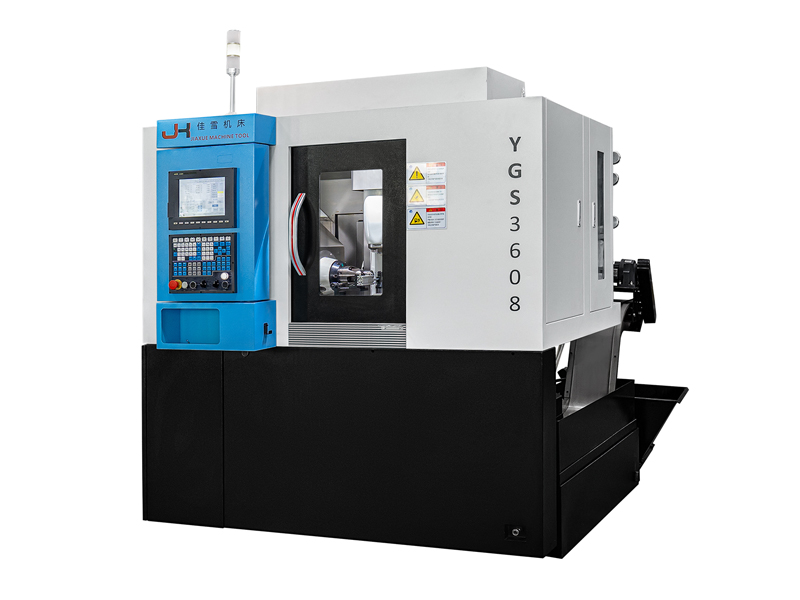

YGS3608 CNC型

YGS3608CNC型

高速干、濕切臥式數控滾齒機

CNC DRY OR WET HORIZONTAL TYPE HIGH SPEED GEAR HOBBING MACHINE

YGS3608CNC型高速干、濕切臥式數控滾齒機采用展成法原理，通過數控系統電

子齒輪箱(EGB)功能，實現分齒運動和差動補償運動。能完成圓柱齒輪、斜齒

輪、鼓形齒輪、蝸輪及花鍵等齒的加工。

本機床為高速數控滾齒機，非常適合于儀器、儀表制造行業、汽車、摩托車行業，

微型減速機行業及國防軍工等企業的小模數齒輪大批量加工。

YGS3608CNC dry or wet horizontal type high speed Gear hobbing machine

Adopted with principle of generating method and CNC EGB,to achieve gear rack movement and differential compensation,Dry or wet cutting,horizontal type,YGS3610B CNC gear hobbing machine is available to precisely produce cylindrical gear,helical gear,drum gear,worm gear and spline etc.

This model is widely applied for large production of small module gears in the Industries of instruments/apparatus,electric tools,motorcycle/auto,reducer motor and aeronautics/astronautics or defense military field etc.

主要特點MAIN FEATURES:

1、本機床為五軸四聯動，五個數控軸為:

B一滾刀主軸回轉運動

C一工作臺主軸箱回轉運動

X一徑向進給運動

Y一切向進給運動

Z一軸向進給運動

四個聯動軸為:B軸、C軸、X軸、Z軸;

2、采用電子齒輪箱(EGB)實現分齒運動和差動補償運動;

3、快退保護功能:在斷電或發生故障按下急停時，同步快退讓刀，避免損壞刀具;

4、具有故障診斷及報警顯示功能;

5、具有二次切削對刀功能:在齒輪粗滾熱處理后，精加工硬度HRC59°±2°的硬齒面加工;

6、滾刀主軸、工件主軸采用高精度齒輪副實現高速高精度分度，并具有消除間隙裝置，提高機床的運動精度和零件的加工精度。

7、具有干、濕切功能:選用合適的滾刀可進行高速干式切削;

8、加工精度可達G B / T 10095.1-2008的6級，齒面粗糙度為Ra1.6u m。

1,6 axes control, 4 axes linkage,the 6 CNC axes are:

  A axis:Hob shaft swivel

  B axis:Hob spindle swivel

  C axis: Workpiece spindle swivel

  X axis:Radial feed

  Y axis:Tangential feed

  Z axis:Axial feed

  The 4 linkage axes are:B,C,X, Z

2,Electronic gear box to achieve gear rack and differential

  compensation.

3,Backward protection function:when interruption of power or another kind of emergency

  synchronously retreat knife for protection.

4,Software for fault diagnostics and alarm show.

5,Precise cutter setting in the second cutting after hear treat in initial hobbing,up to the hardness of HRC59°±2°.

6,The hob spindle and the work piece spindle adopt high-precision gear pairs to achieve high-speed and high-precision indexing, and have a gap elimination device to improve the movement accuracy of the machine tool and the processing accuracy of parts.

7,With dry and wet cutting functions: select suitable hobs for high-speed dry cutting

8,The machining accuracy can reach Grade 7 of G B/T 10095.1-2008, and the tooth surface roughness is Ra1.6μm.

標準配置 standard equipment

臺灣新代數控控制系統  taiwans new generationCNC system

工件夾緊裝置 workpiece clamping device

全密封護罩 Close Cover

10.4"彩色顯示器 10.4" color screen

Ф13刀桿組件Ф13 hob cutter set

集中定量潤滑裝置quantitative lubrication device

帶熱交換器的電氣控制箱electric control box with heat exchanger

液壓系統hydraulic system

磁力排屑機、鐵屑箱magnetic chip conveyor

機床狀態顯示燈situation index light

冷卻系統cooling system

機床減震墊鐵 absorber pad

機床照明燈illumination light

循環潤滑系統recycling lubrication system

安裝調整專用工具install and adjust tools

滾珠絲杠導軌(進口)Ball screw guider(entry)

軸承(進口)Bearing(entry)

使用說明書operation&service manual

可選配置OPTIONAL EQUIPMENT

精密對刀精加工裝置skiving precise cutter setting

工件夾具 workpiece clamping device

機動去毛刺裝置mechanical deburring equippment

油霧處理裝置(濕切)oil mist collector(wet)

工件夾具 workpiece clamping device

Ф8刀桿組件Ф8 hob cutter set

Ф10刀桿組件Ф10 hob cutter set

Ф16刀桿組件Ф16 hob cutter set

工件輔助托架auxiliary bracket

活絡頂尖rotatable thimble

主要技術參數MAIN TECHNICAL SPECIFICATION

項目Item    單位Unit    YGS3608A/B CNC型

最大工件直徑Max workpiece diameter     80 mm

最大工件模數Max module        1.5mm

最大軸向行程Max axial travel       150 mm

加工齒數范圍No. of teeth       3~999teeth

滾刀最大直徑x長度Max diameter and length of Hob       60 x 70mm

滾刀軸直徑Max diameter of hob arbo      Ф13mm

滾刀竄刀長度Max length of hob shift      70mm

滾刀主軸(B軸)最高轉速Hob spindle rotation speed B-axis      3000 rpm

工件主軸(C軸)最高轉速Table rotation speed C-axis      1000 rpm

X, Z軸快速移動速度X/Z rapid traverse speed      5000 mm/min

尾座頂尖行程 Tailstock  travel             60  mm

滾刀架最大回轉角度Hob head swivel         ±45°degree

電機總功率Total Power of motor     16  KVA

機床外形尺寸(長X寬X高)Overall dimensions     1820 x 1950 x 2060   mm

機床凈重Net weight      3500 Kg
